UNI-TANKS

.

Web 3 5bbl Unitanks.jpg

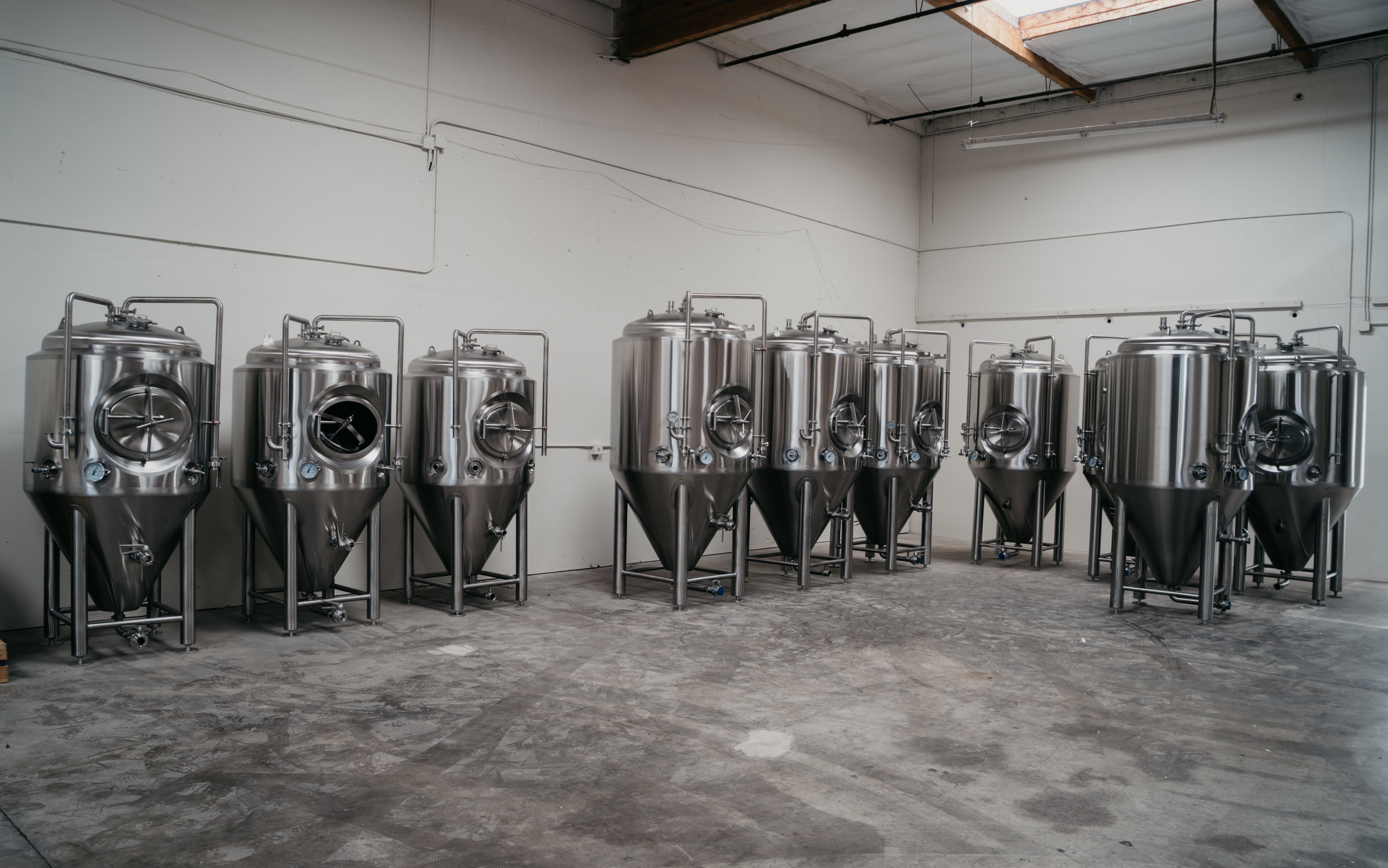

Misc Tanks .jpg

• Interior/Exterior Tig welded 304 Stainless Steel
• 3mm interior tank wall thickness
• 2mm exterior shell wall thickness
• 3" polyurethane insulation on shell and cone (chloride free)
• 2B sanitary interior polish (pickled and passivated)
• 4N exterior polish (sanitary)
• Adjustable feet with anchor holes
• Operating pressure 20psi (Tested at 30psi)
• 3/4” FNPT for glycol attachment
• Full rotating racking arm
• Full shadowless side man way door (15"x17")
• 20psi pressure/vacuum relief valve
• Large dial pressure gauge
• Ladder/hose hooks
• Perlick sample valve
• 4" hop-port with handle and hook for dry hop bag
• 1/2" FNPT for RTD temp control thermowell
• Large dial temp gauge with 12" probe
• CIP arm with 2.5” spinning spray ball and 360 deg of coverage
• Dedicated blowoff tube
• 2 piece 12" carbonation stone with ball valve
• 4 Stainless steel handle Butterfly valves
• 60 deg cone bottom with 20% head space
• All necessary EPDM gaskets

Asset 7-80.jpg

3.5BBL uni-TANK

5BBL uni-TANK

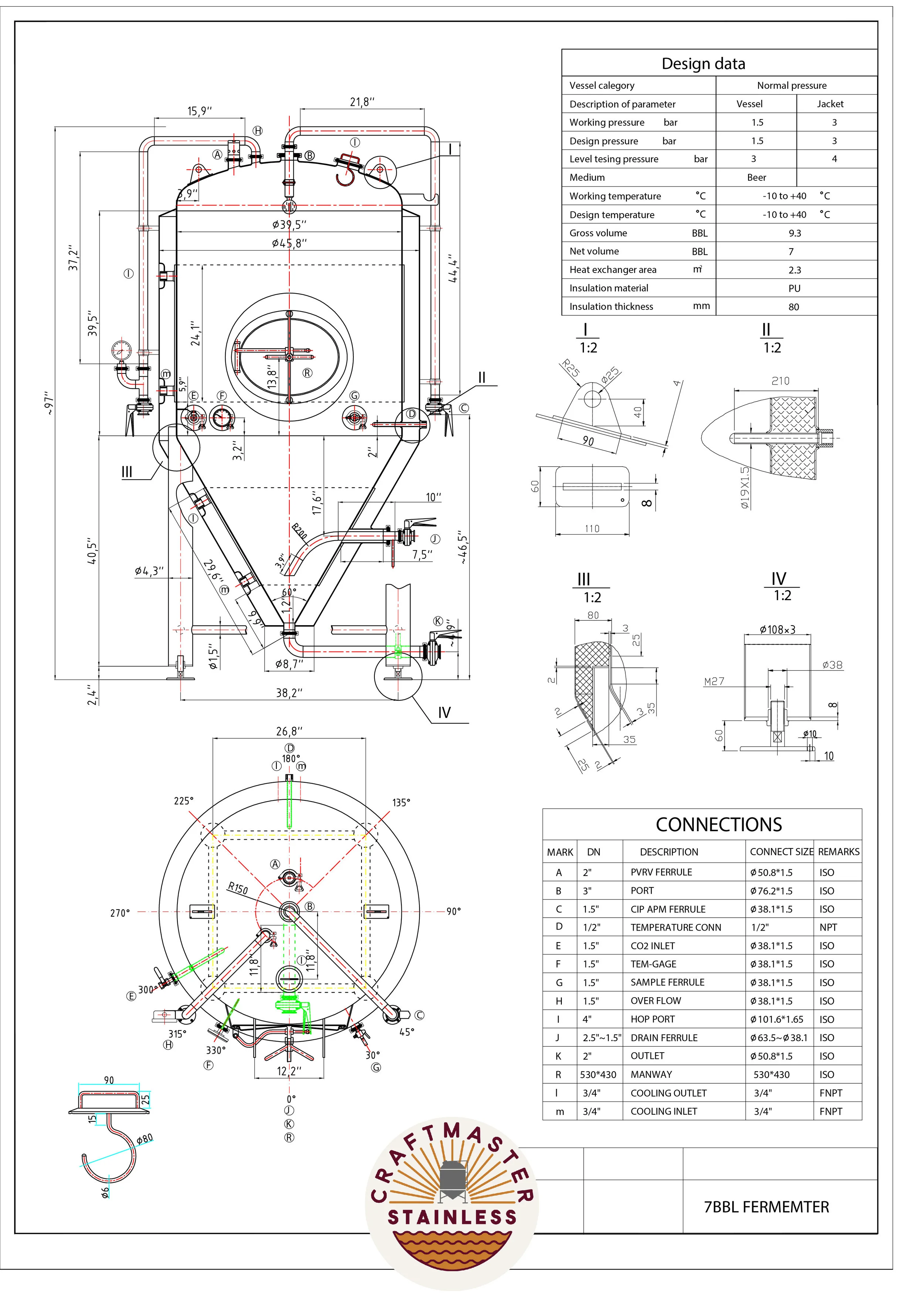

7BBL uni-TANK



10BBL uni-TANK

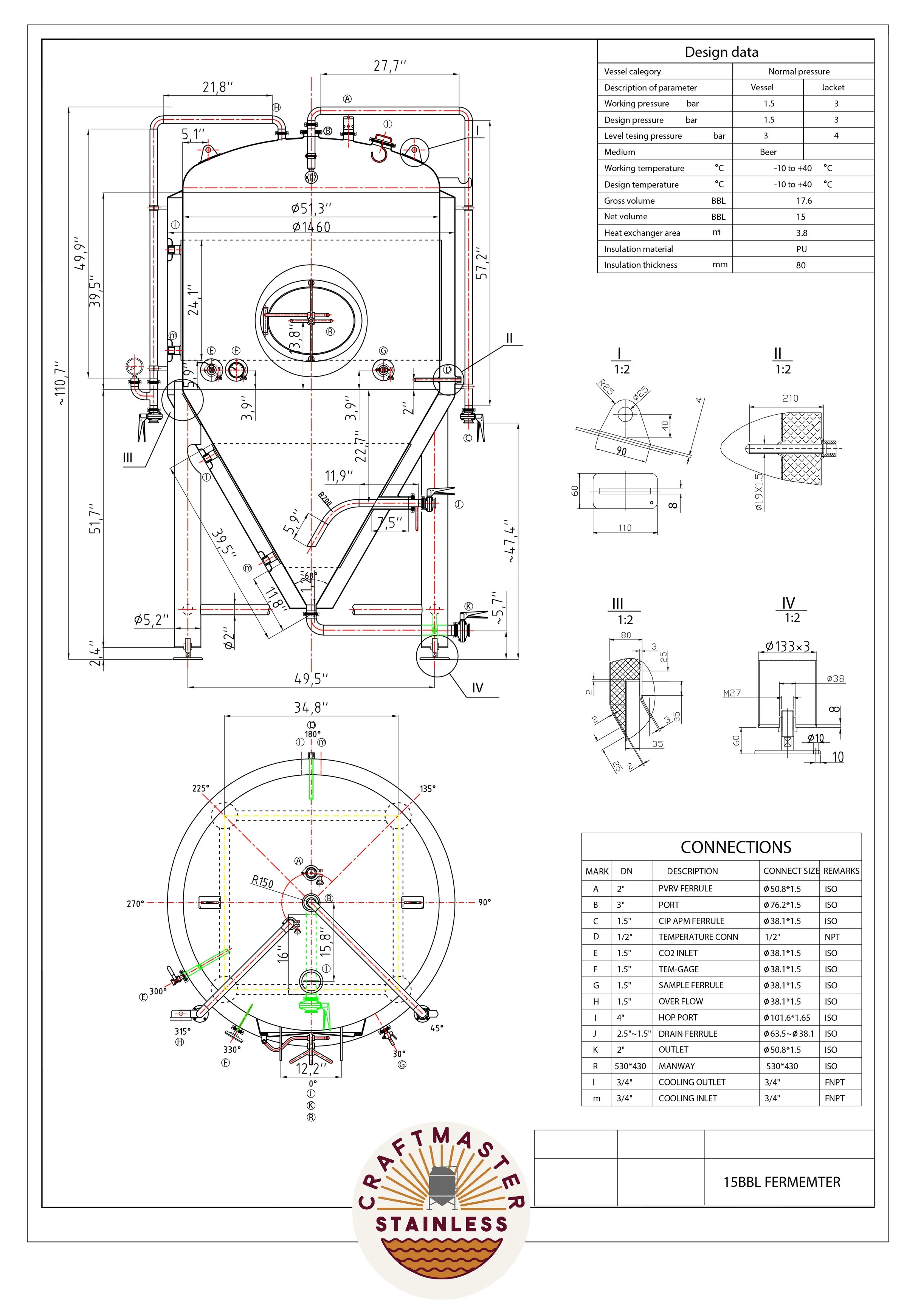

15BBL uni-TANK

20BBL uni-TANK



30BBL uni-TANK

40BBL uni-TANK
