BRITE TANKS

.


Brite Tank 3.jpeg
Brite Tank 2.jpeg

Brite Tank 1.jpeg

• 3mm interior tank wall thickness
• 2mm exterior shell wall thickness
• 3" polyurethane insulation on shell and bottom dish (chloride free)
• 2B sanitary interior polish (pickled and passivated)
• 4N exterior polish (sanitary)
• Adjustable feet with anchor holes
• Operating pressure 20psi (Tested at 30psi)
• 3/4” FNPT for glycol attachment
• Dual Zone Dimpled cooling jackets
• Full shadowless side man way door (15"x17")
• 20psi pressure/vacuum relief valve
• Large dial pressure gauge
• Zwickel style sample valve
• 1/2" FNPT for RTD temp control thermowell
• Large dial temp gauge with 12" probe
• CIP arm with 2.5” spinning spray ball and 360deg of coverage
• 2 piece 12” carbonation stone with ball valve
• 20% Head Space
• All stainless handle valves and EPDM gaskets included



Asset 7-80.jpg

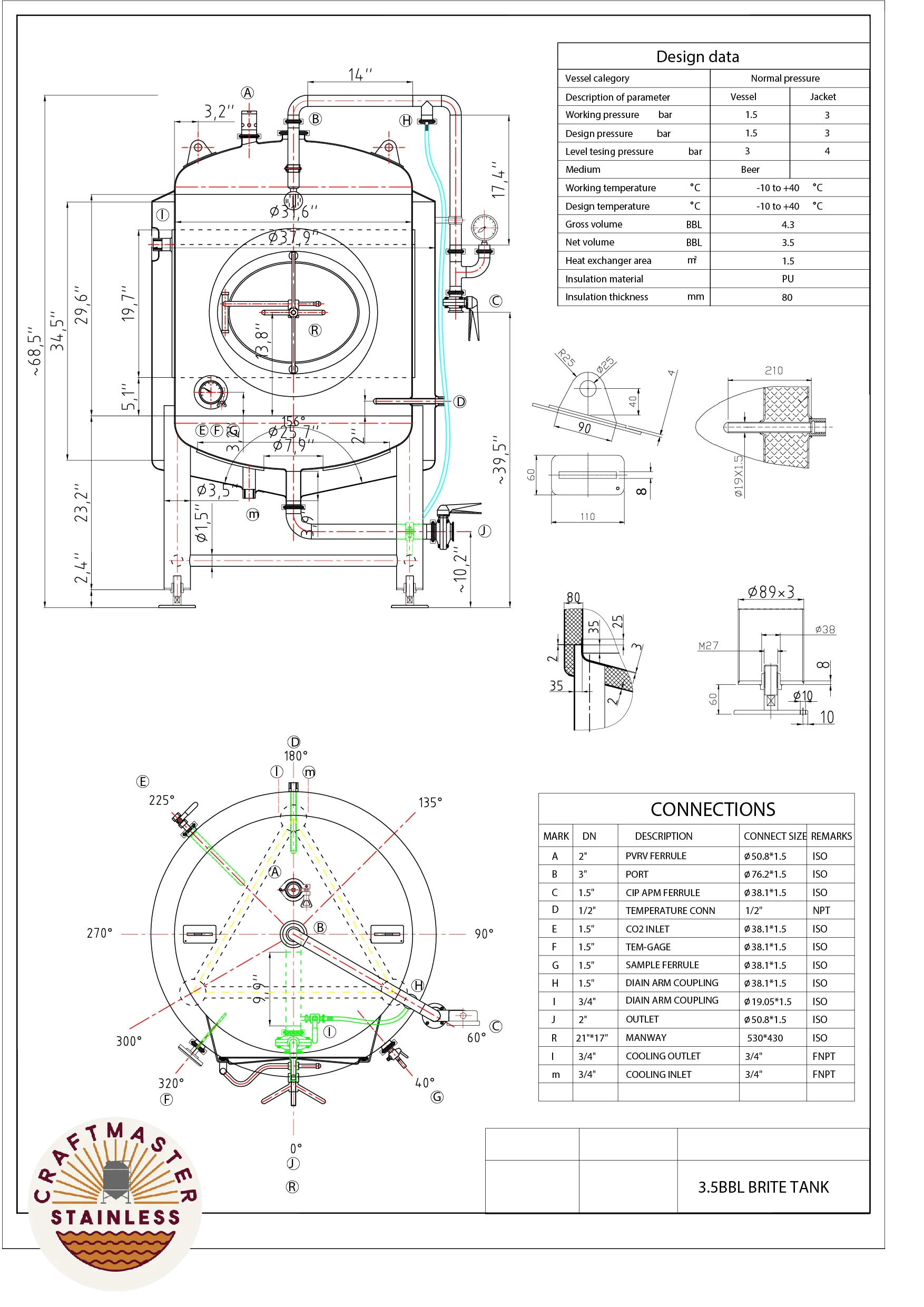

3.5BBL BRITE TANK

5BBL BRITE TANK

7BBL BRITE TANK



10BBL BRITE TANK

15BBL BRITE TANK

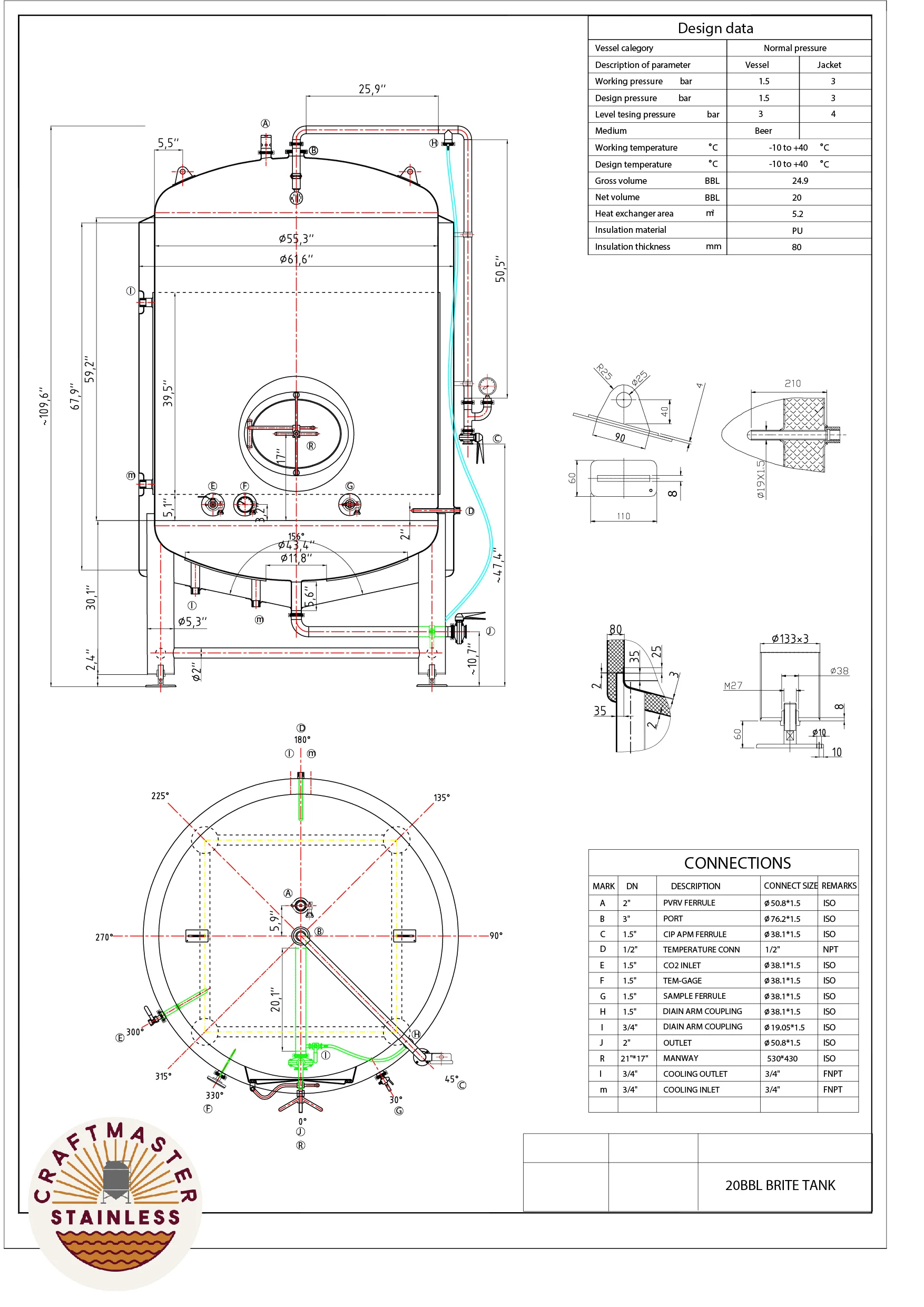

20BBL BRITE TANK



30BBL BRITE TANK

40BBL BRITE TANK
