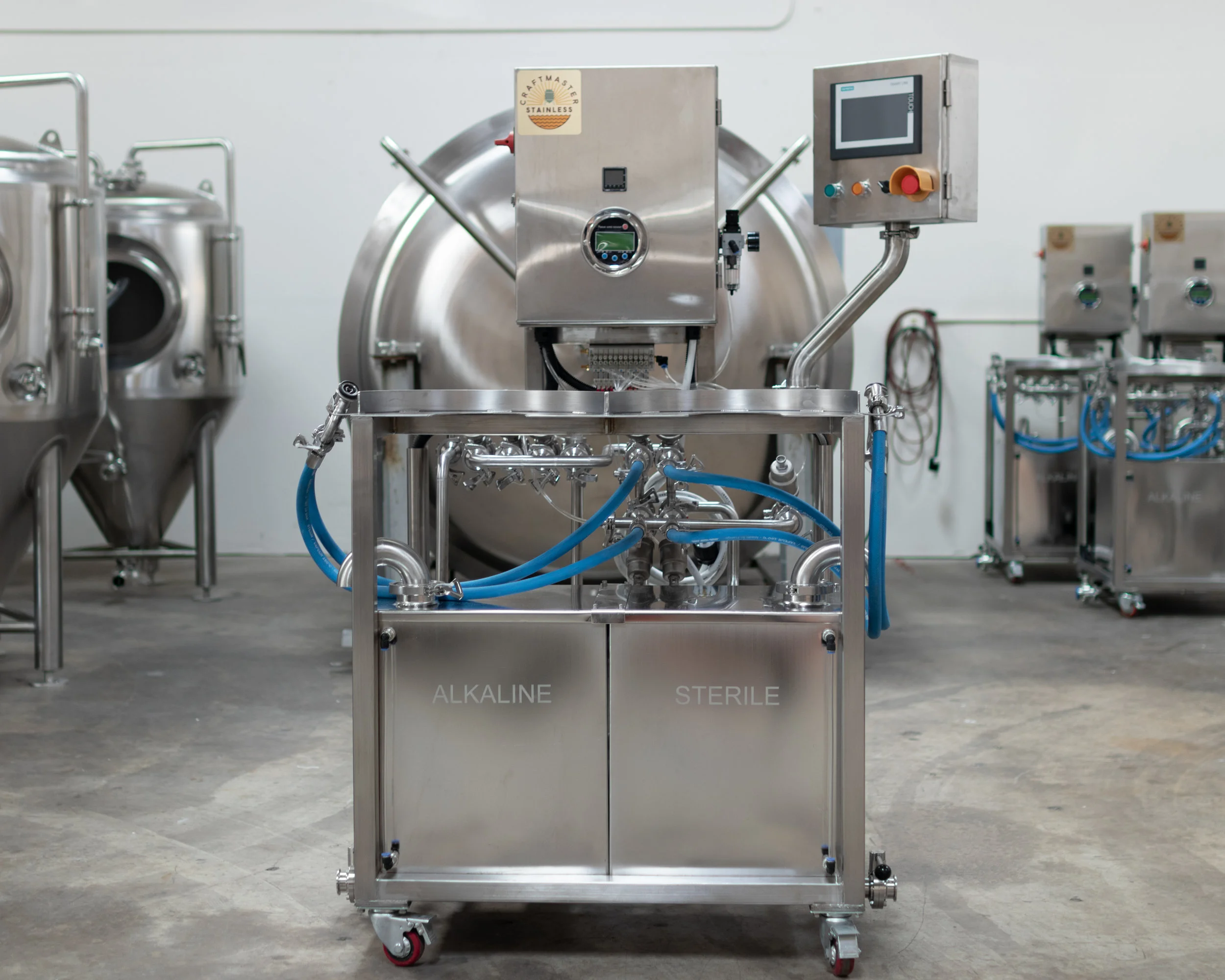

Keggernaut Semi-Automatic Keg Washer
The Semi-Automatic Keg Washer features a Siemens interface, giving brewers/beverage makers full touch-screen control over wash cycle timing and temperature settings. With two cleaning stations the Keggernaut Beer Keg Washer is designed to wash two kegs of any size and is capable of cleaning up to 40 kegs per hour depending on the length of the wash cycle. Simply engage the couplers invert the kegs and press start! Kegs are automatically washed sanitized and pressurized within minutes. By using this semi-auto beer keg cleaning equipment, you have quick and easy access to all the transport containers you could ever need for your product. So, if you’re interested in having a keg washing system for your own brewery, contact us at CraftMaster Stainless. You can also review the features and specifications of this commercial keg cleaning equipment by reading the list below.
Need financing?
Click the button below to Apply for financing Through North star Leasing
Key Features

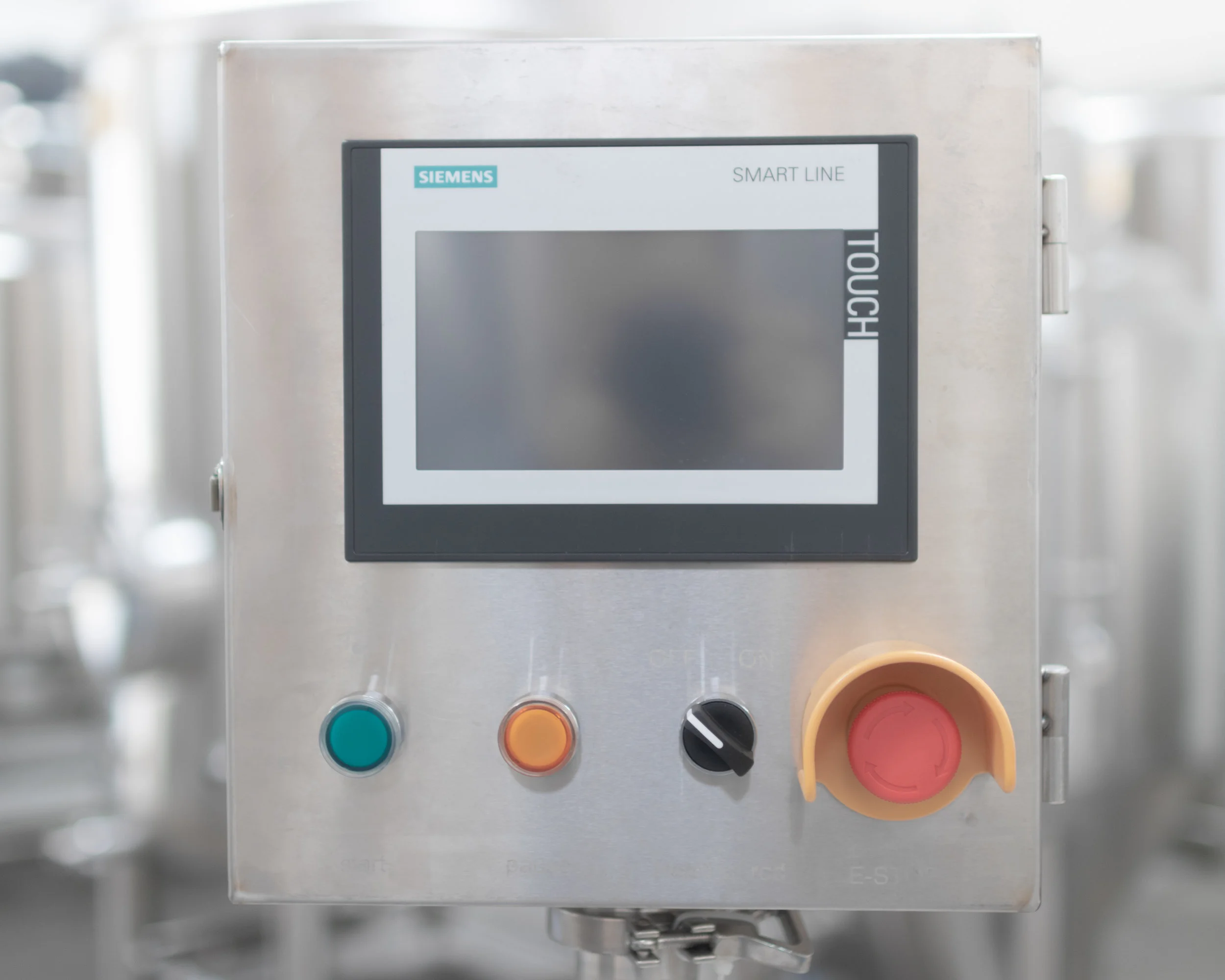

Easy-to-use Siemens PLC and touch-screen interface
Cleans Up To 40 Kegs Per Hour (Depending on cycle times)
PLC program allows full control over 14 cleaning cycles
Electric immersion heating element located in caustic tank
Omron Temperature Control Unit
Two 20 gallon holding tanks (sanitizer and caustic)
Sanitizer and Caustic Recovery
IFM Low Fluid Level Sensors
IFM Pressure Control Instrument
Built in low flow pulse cycles for cleaning the keg spear

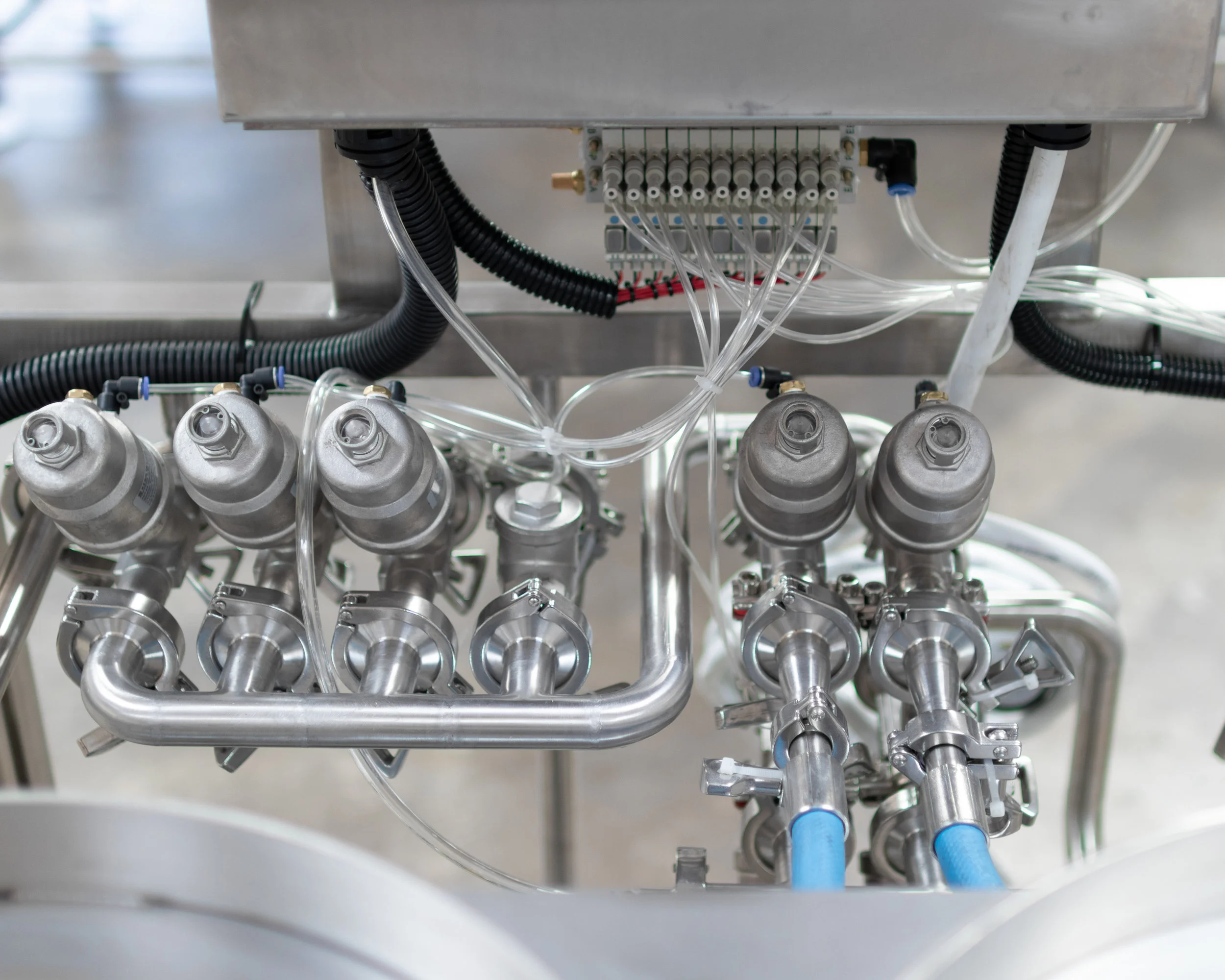

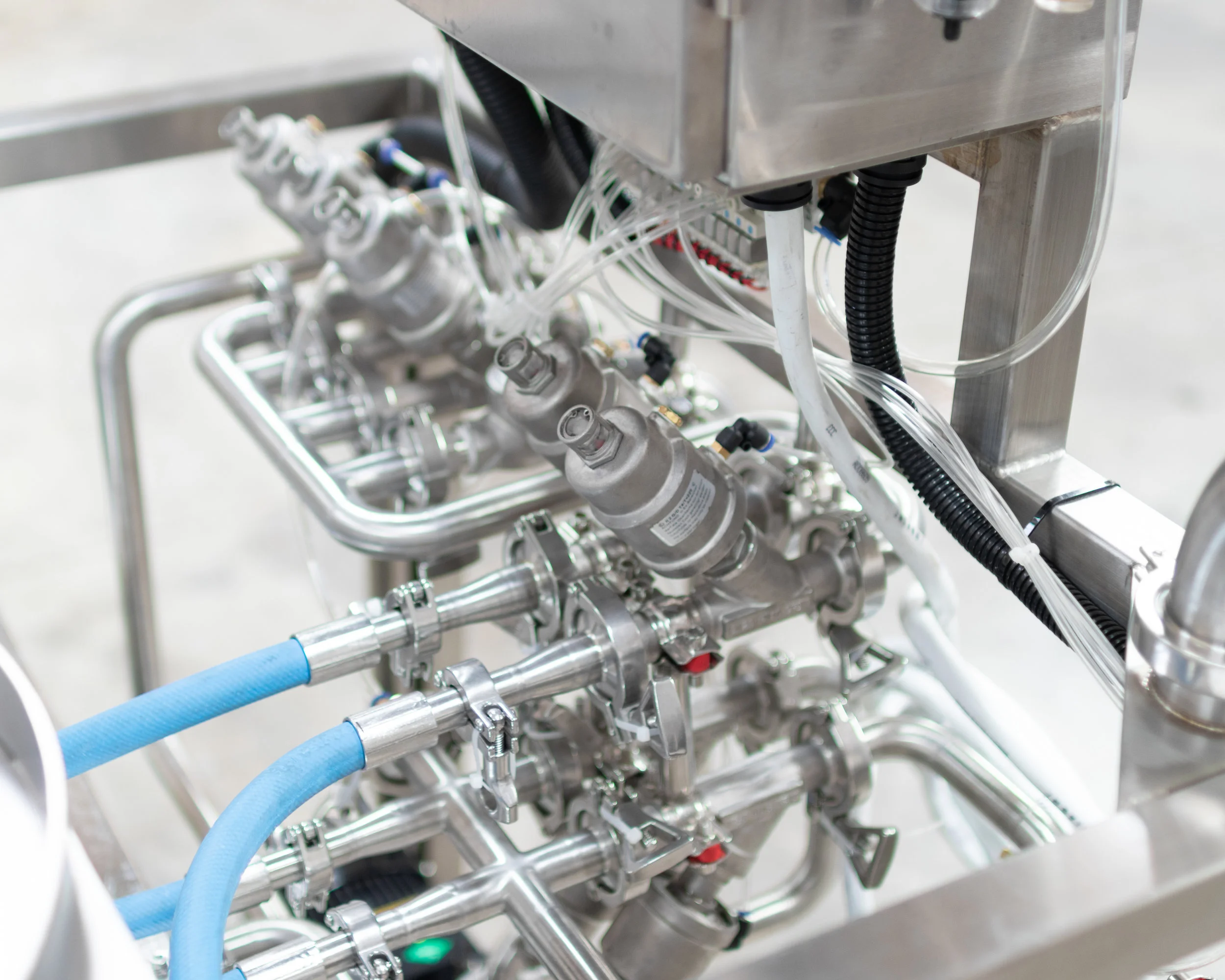

Sanitary stainless steel contact components and process piping
Micro Matic manual couplers to secure to kegs
Adjustable pressure regulators for incoming compressed air and CO2
Compact design and durable construction
Semi-Automatic Keg Washer - Requirements:
Air source 90 psi @ 14 CFM
CO2 Bulk Source 90 psi
Water Source 40-60psi
208/230V 60hz 3 Phase Power Standard (Single Phase Available)
Minimum Amps 23
Maximum Amps 63
80 Gallon Air Compressor, with 14.0CFM @ 90P.S.I. or Larger! go BIGGER! We recommend The Husky Brand 80-Gallon, 3-Piston, Belt Drive Stationary Air Compressor from Home Depot, or any brand that fits the requirements
** Air Regulator with Water Separator **
Single Phase Power, 208-240V,60Hz, 50 Amps
3-Phase Power, 208-240V,60Hz, 30 Amps
** Air regulator with water separator must be installed inline on the incoming air going to the Keg Washer. Water in the airlines will damage your machine. **
14 programmable cleaning cycles:
CLEANING CYCLES LISTED IN ORDER BELOW
Blow Out Residual Fluid
Clean Water Rinse
Clean Water Discharge
Caustic Pulse Wash
Caustic Recovery
Clean Water Rinse
Clean Water Discharge
Sanitizer Pulse Wash
First Sanitizer Recovery
Second Sanitizer Recovery
Steam Purge To Drain
Steam Holding
CO2 Purge to Drain
CO2 Purge to Fill
INDUSTRY PARTNERS
Operating MANUAL & Online USER GUIDE
VIDEO
FOR MORE INFORMATION CALL
916-750-4677
Every Brewery is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
